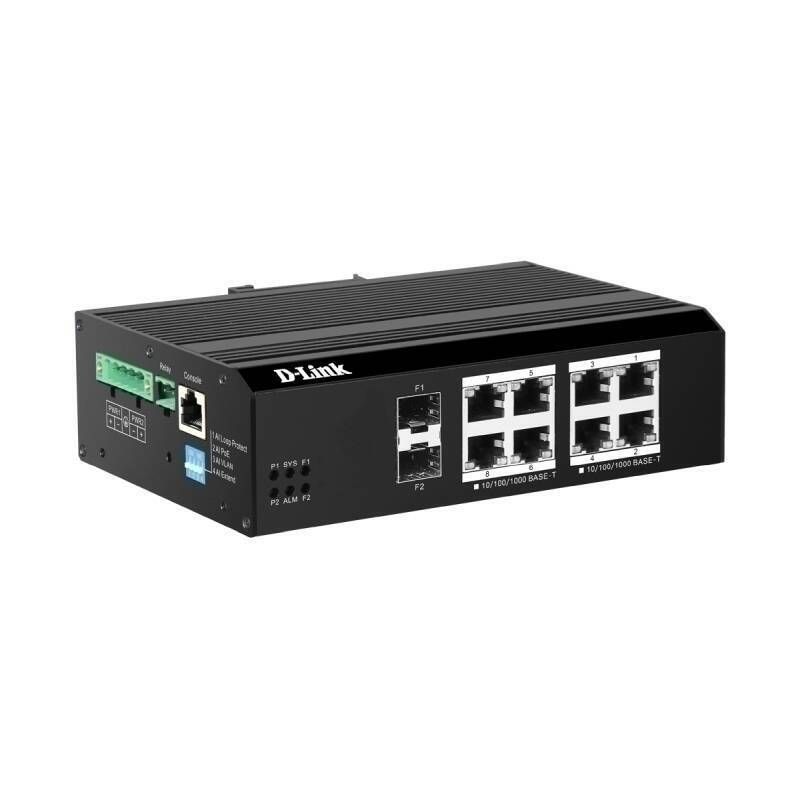

Specifications:

• PoE Budget: 240 Watts


• Switching Capacity: 20 Gbps


• DIN Rail Mountable: Yes


• Fans: Fanless


• Metal Housing: Yes


• MAC Address Table Size: 8K


• Management Options: Smart Managed


• PoE Type Required: PoE+


• PoE Ports: 8


• PoE+ (802.3at) Supported: Yes


• Power Input: 48 to 56V DC terminal block dual input


• SFP Ports: 2


• Operating Temperature: From -40� to 75�C


• 1000BASE-T Ports: 8


• Switch Series: DIS Industrial Series


• Surge Protection: 6 kV Surge Protection

Features:

• 8 1000BASE-T PoE+ ports and 2 SFP ports


• PoE budget is 240 Watts


• Robust and High-Redundancy Design


• DIN Rail mountable


• Fanless, passive cooling design


• High EMC endurance


• 6 kV surge protection on copper ports


• Dual power input for redundant power supplies


• Advanced networking features


• RUN-Ring Technology with <10ms self-healing
