Specifications:

• Phase: Single Phase


• Form Factor: Rackmount / Tower


• UPS Topology: Online Double Conversion


• Energy Saving Technology: Online ECO Mode Efficiency > 98%


• Active PFC Compatibility: Yes


• Generator Compatibility: Yes


• Nominal Input Voltage ( Vac ): 230


• Input Voltage Range ( Vac ): 110 - 300


• Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 144 Vac | 0-75% Load for 145 - 179 Vac | 0-100% Load for 180 - 300 Vac


• Input Frequency ( Hz ): 50 - 60


• Input Frequency Detection: Auto-sensing


• Rated Input Current ( A ): 30


• Input Power Factor: 0.99


• Input Connector Type: Hardwire Terminal Block


• Capacity (VA): 6000


• Capacity (Watts): 6000


• On Battery Waveform: Pure Sine Wave


• On Battery Frequency ( Hz ): 50 � 0.5% | 60 � 0.5%


• ECO Mode Voltage Tolerance: � 10 %


• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse


• Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec


• Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec


• Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately


• Harmonic Distortion (Linear Load): THD?1.5%


• Harmonic Distortion (Non-linear Load): THD?2%


• Internal Bypass: Automatic Bypass / Manual Bypass


• Maintenance Bypass: Yes


• Outlet(s) - Total: 9


• Outlet Type: Hardwire Terminal Block x 1 | IEC C13 x 4 | IEC C19 x 4


• Typical Transfer Time ( ms ): 0


• Runtime at Half Load ( min ): 17.7


• Runtime at Full Load ( min ): 5.6


• Typical Recharge Time ( Hours ): 4


• Maximum Charging Current ( A ): 4


• Adjustable Charging Current ( A ): 1 - 4


• Start On Battery: Yes


• Smart Battery Management (SBM): Yes


• User-replaceable: Yes


• Hot-swappable: Yes


• Compatible Extended Battery Module (EBM): BPS240V7ART3U


• Extended Battery Module Auto-detection: Yes


• Max. EBM Quantity ( pcs ): 10


• Surge Suppression ( Joules ): 1335


• EMI/RFI Filtration: Yes


• Tiltable LCD Panel: 15 Degrees


• HID Compliant USB Port(s): 1


• Serial Port: RS232


• Dry Contact (with Relay): Yes


• Emergency Power Off (EPO) Port: Yes


• Power Management Software: PowerPanel Business (Recommended)


• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205


• Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included


• Enclosure Construction: Metal


• Rackmount Rail: Yes


• Rackmount Ears: Yes


• Dimensions: 433 x 213.5 x 661mm


• Weight: 75kg


• Installed Rack Height ( U ): 5


• Online Thermal Dissipation ( BTU/hr ): 1777


• Audible Noise at 1.0M from Surface of Unit: 62 dBA


• Certifications: CE / RoHS

Features:

• Online (Double Conversion) UPS Topology


• High Output Power Factor


• Overload Protection


• Maintenance Bypass Switch


• Extended Battery Module Auto-detection


• User-replaceable Batteries


• Tiltable LCD Panel


• Relay-type Dry Contact


• SNMP/HTTP Remote Management Capability (Optional)


• Rack/Tower Convertible Configurations


• ECO Mode


• Pure Sine Wave Output


• Zero Transfer Time


• Extended Battery Module (EBM)


• Adjustable Charging Current


• Color LCD Panel


• Emergency Power Off (EPO) Port


• PowerPanel Management Software


• Built-in Remote Cloud Card by Ethernet

What's in the box?

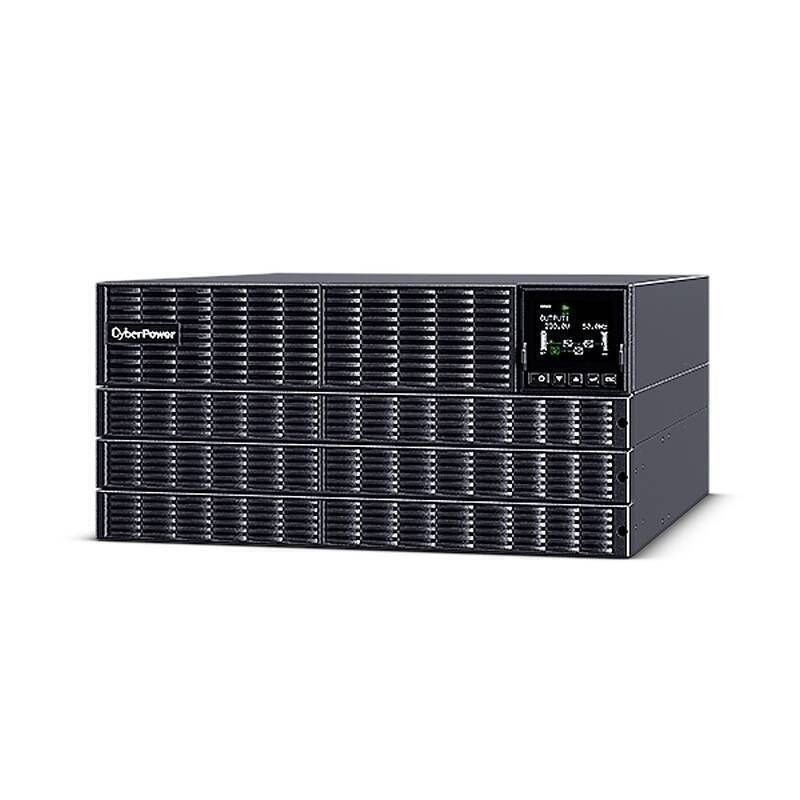

• 1 x OLS6KERT5U UPS


• 1 x External Maintenance Bypass PDU


• 1 x Rackmount Rail


• 1 x Rackmount Ears


• 1 x Rail Kit


• 1 x Screw Kit


• 1 x Power Cord


• 1 x USB Cable


• 1 x Phone Line


• 1 x User Manual
